NEW Lewmar Pro-Fish 1000 Horizontal Windlass Kit $1000 or $1300 with anchor rode

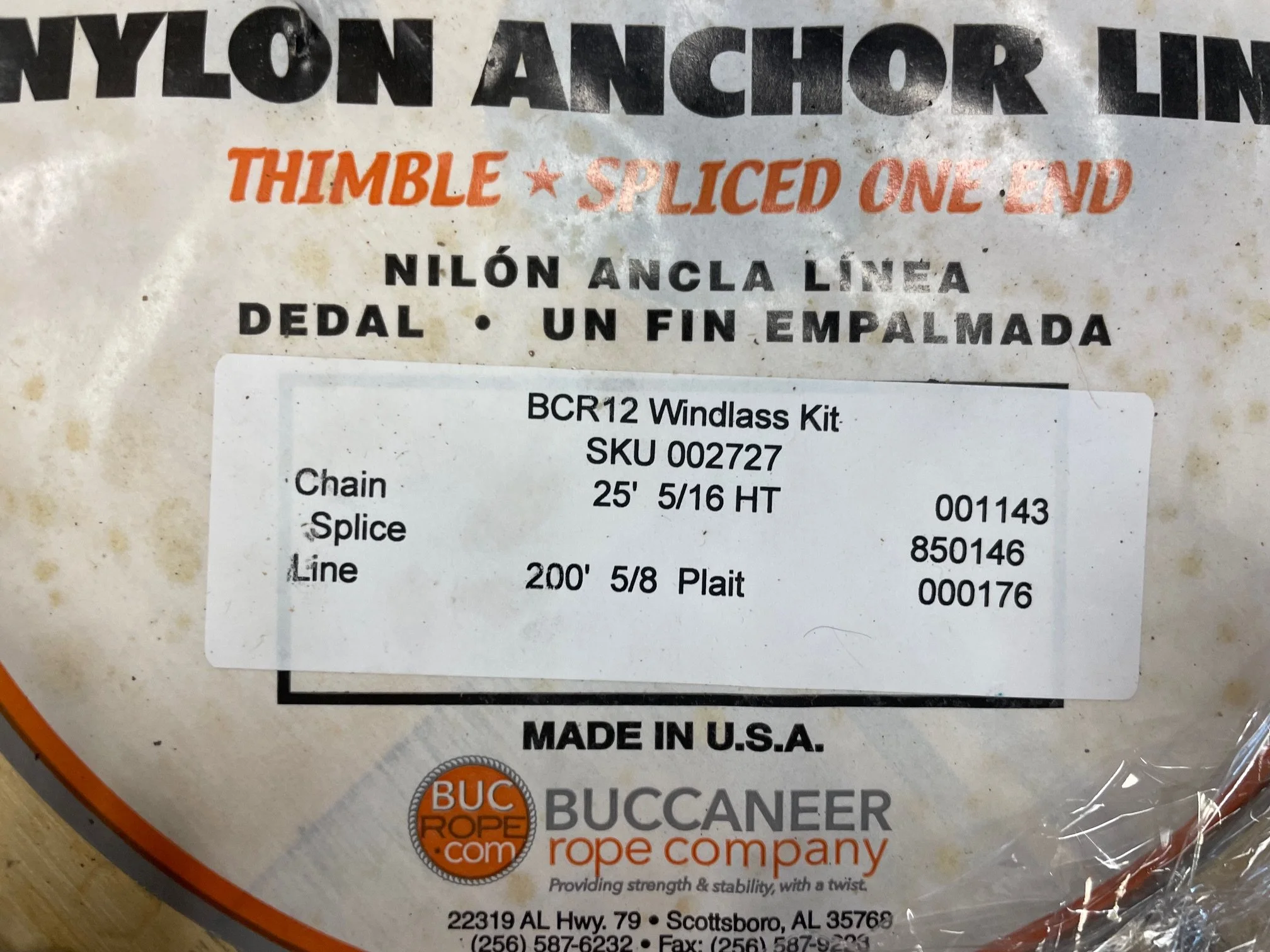

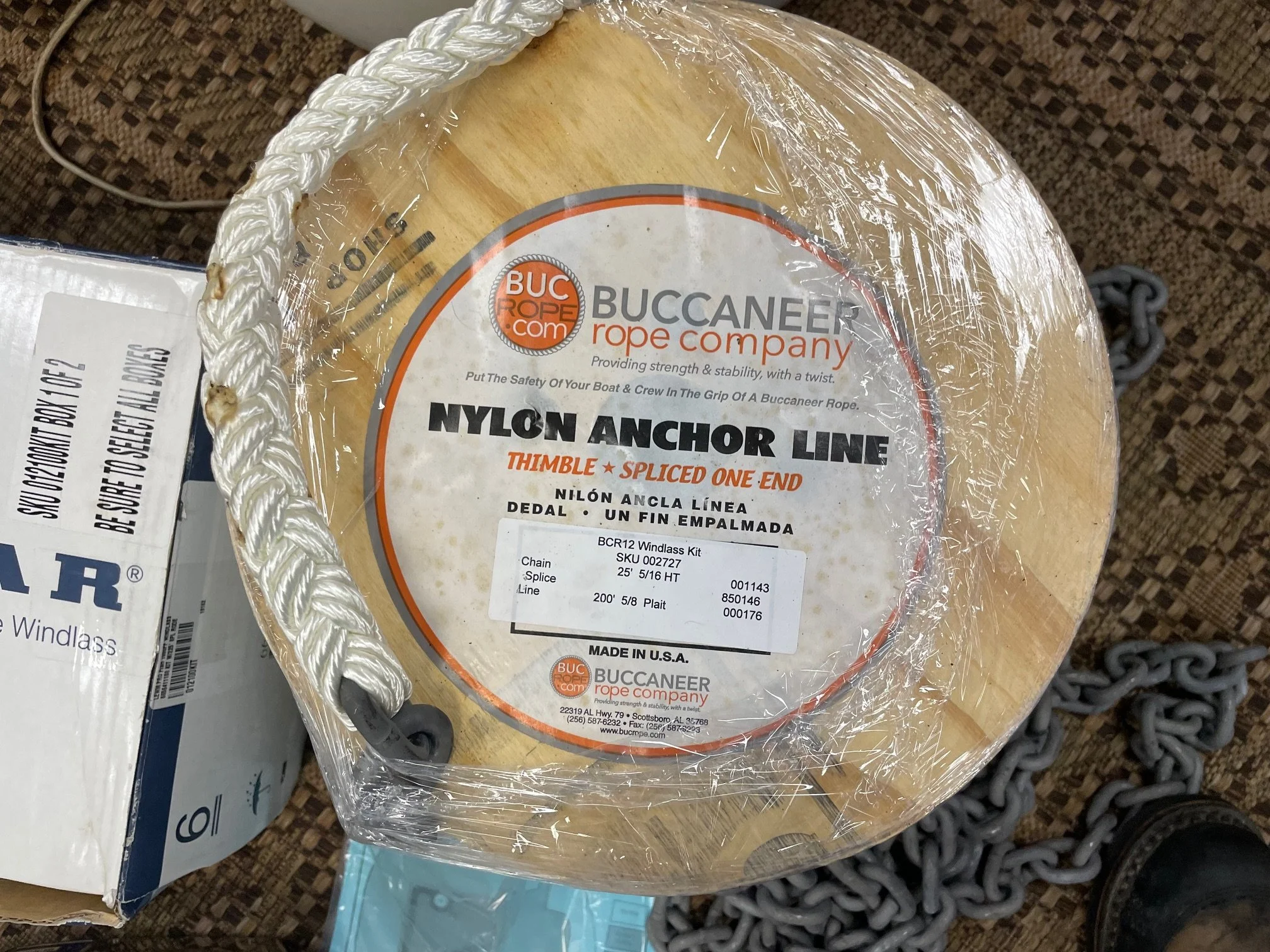

New Lewmar Pro Fish 1000 Kit $1000 w/o rode or $1300 with new 5/8” x 200’ 8 plait with 25’ of 5/16” G4 chain Combined list $1800.00

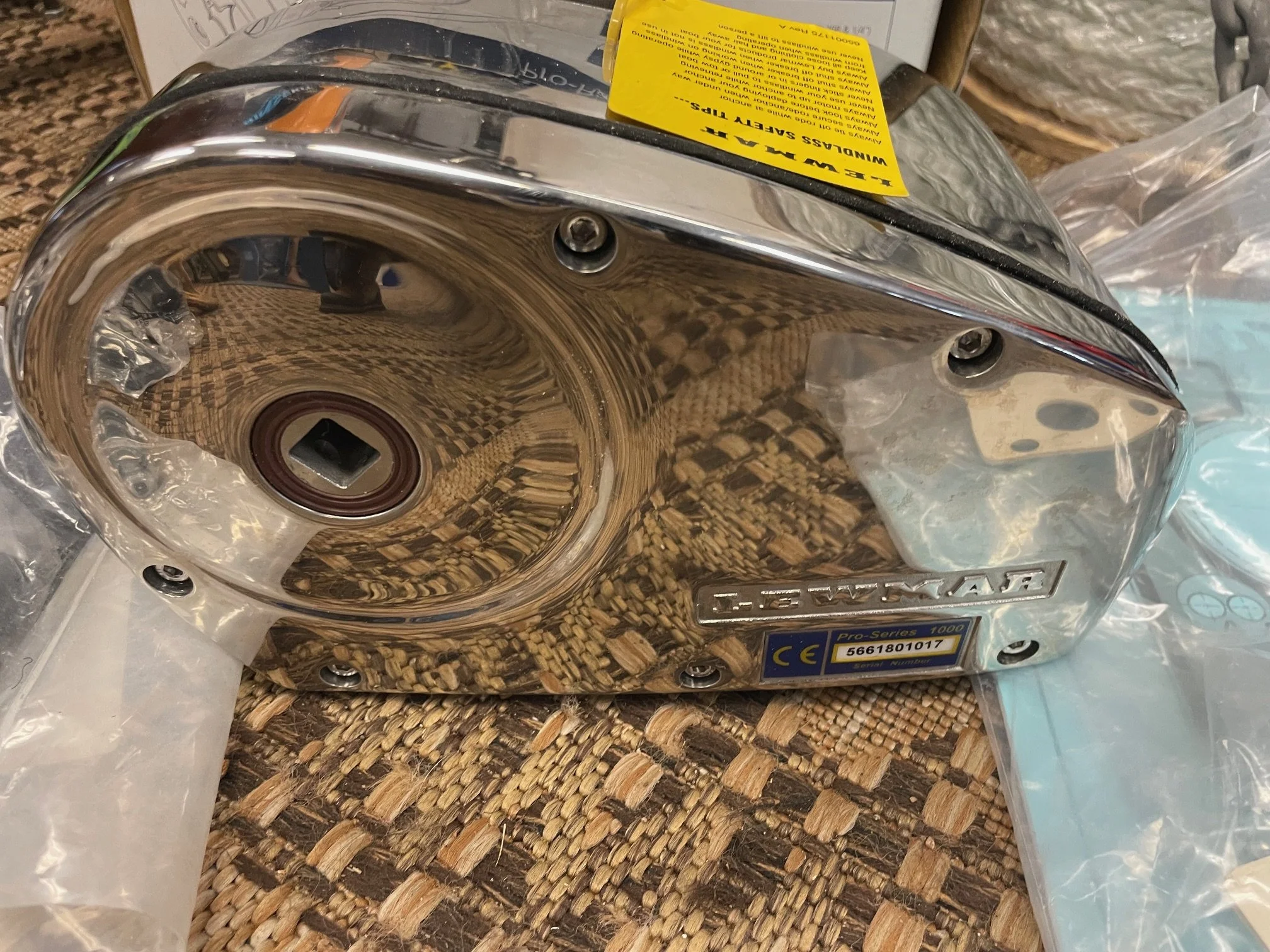

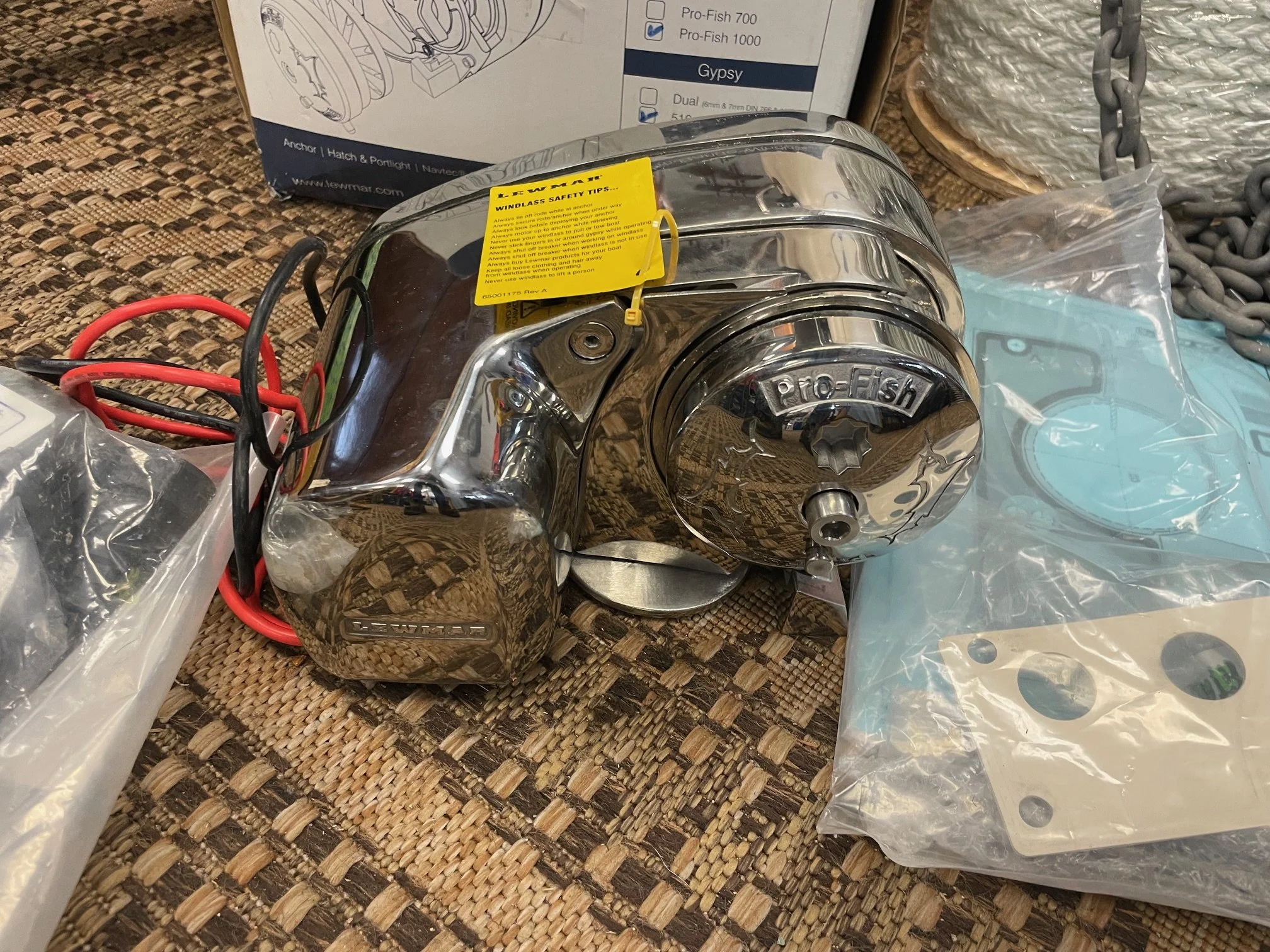

The stainless steel Lewmar Pro-Fish 1000 Horizontal Windlass Kit has an automatic freefall feature that allows you to drop anchor with speed and precision. No more running your motor and wasting fuel "hover fishing" near ledges, wrecks and other key spots. It accommodates 5/16" G4 chain and line sizes of 9/16" or 5/8" for 3-strand and 5/8" for 8-plait.
Features:
Automatic freefall function can be overridden to provide standard up / down operation
Powerful motor provides fast line speed and reliable anchor retrieval at the push of a button
Equipped for manual emergency recovery and requires only a common 1/2" socket wrench
DIY-ready windlass kit offers convenient on-deck installation
Specifications:
Lewmar gypsy no.: 516
Chain size: 5/16" G4
Rope size: 9/16" or 5/8" 3-strand or 5/8" 8-plait
Motor voltage: 12V DC
Power consumption: 700W
Current draw: 50A
Circuit breaker: 70A
Max. pull: 1000 lbs
Boat size: 28' to 38' LOA
Max. working load: 250 lbs
Rode release: Automatic freefall Retrieval speed: 88 ft/min
Material: 100% 316 Stainless steel (including control arm and stripper)
Dimensions: 5 3/4" x 9 5/8" x 7"
Warranty: 5 years

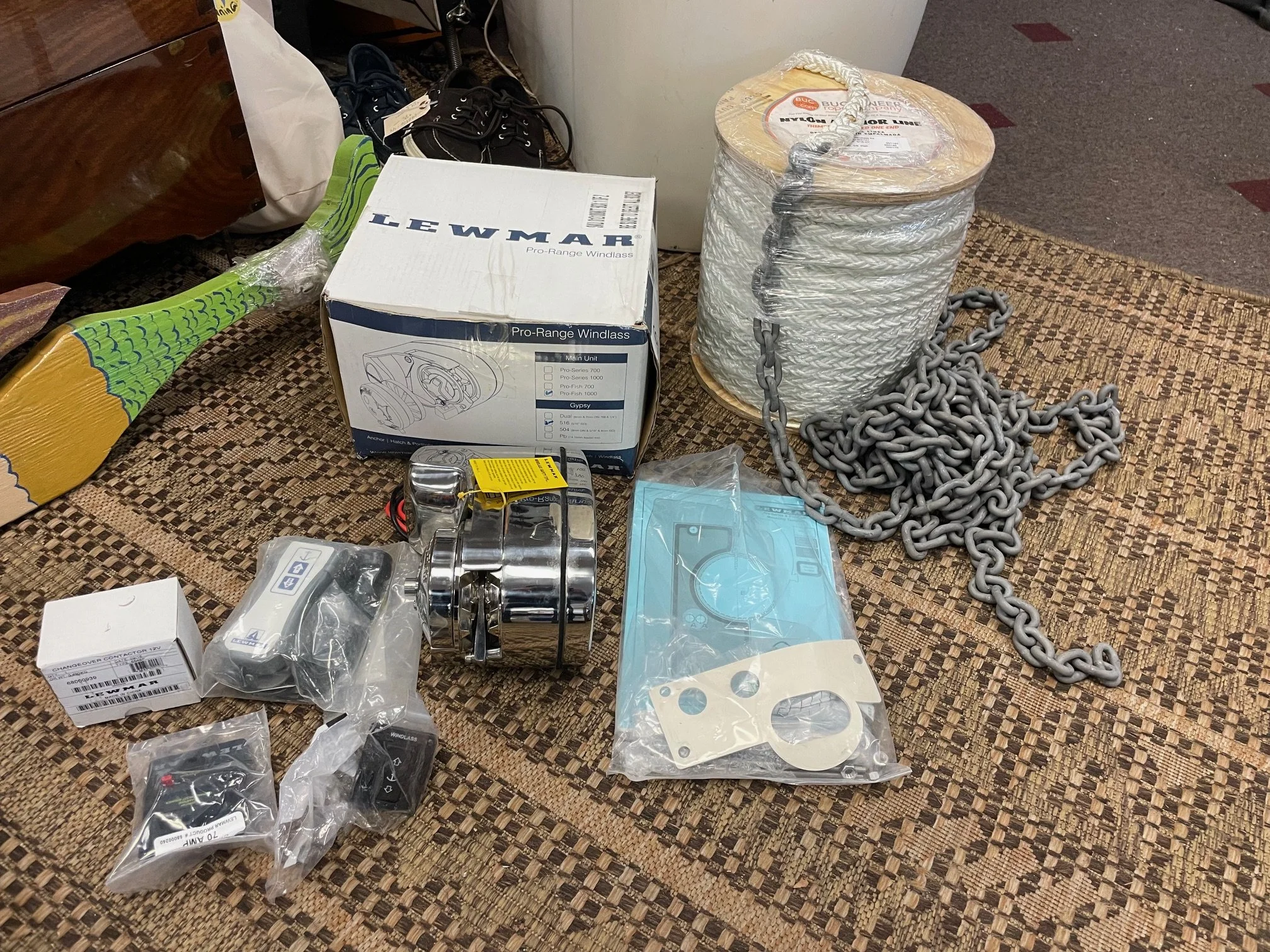

Included:
Windlass
Base gasket seal
Fast-mounting studs
Installation wrench
Circuit breaker
Dual-direction solenoid
Rocker switch
